How to define board's size and shape?

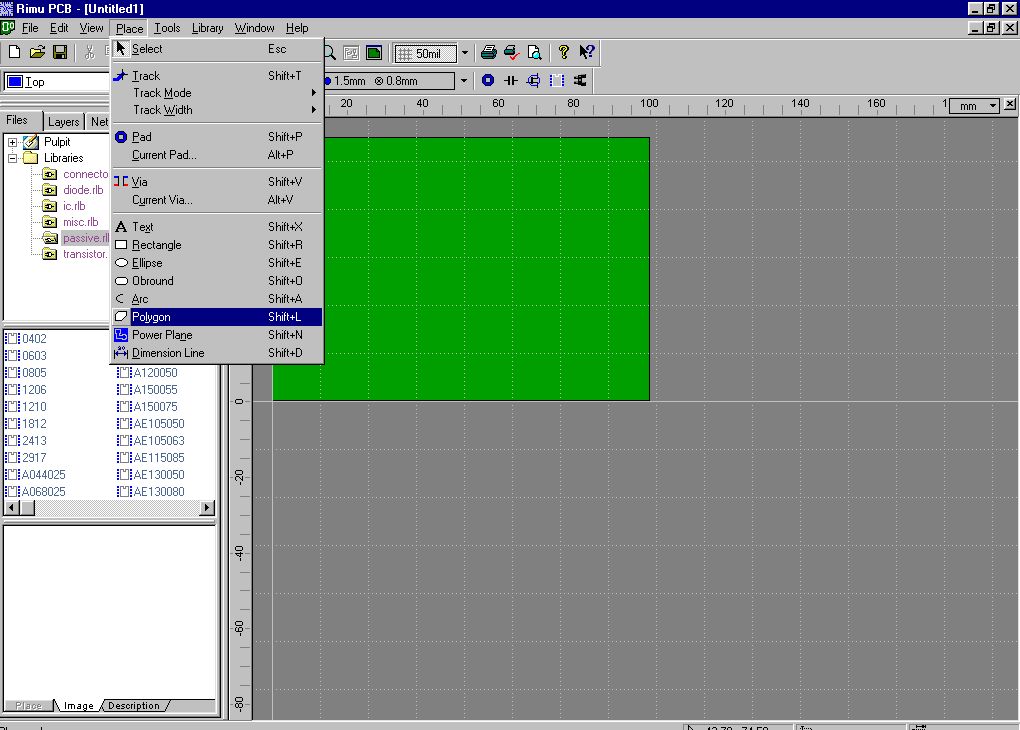

New board draw by tool polygon. (place polygon)

[clik on picture to enlarge]

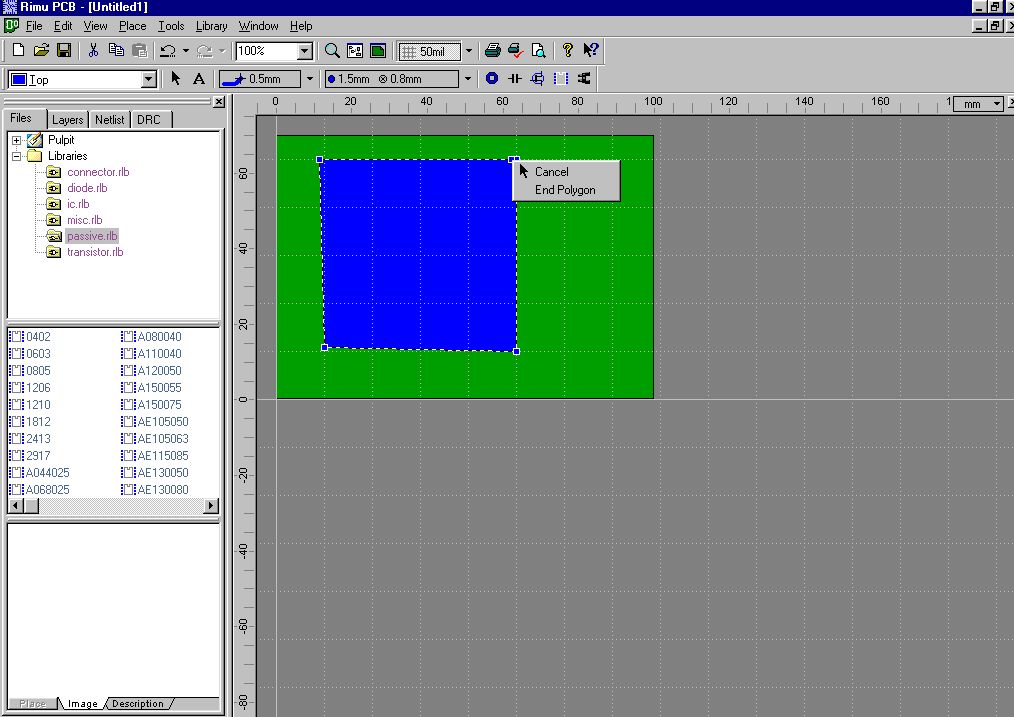

Next go out from draw mode polygon. Press right mouse button:
"End polygon"

[clik on picture to enlarge]

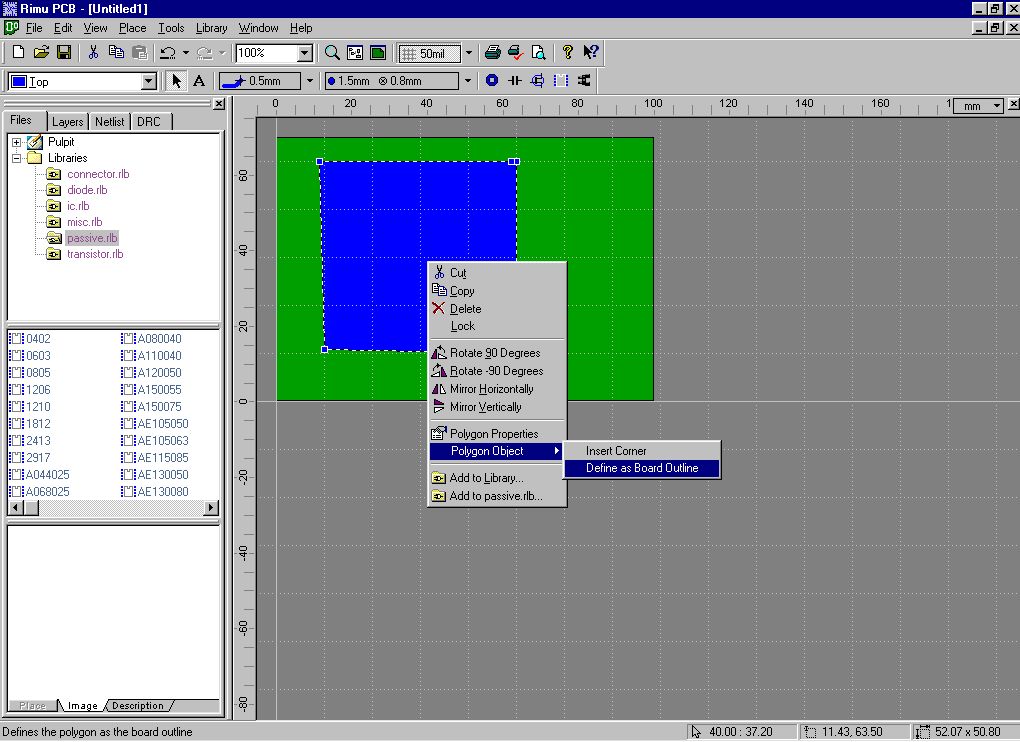

Right mouse button choose opction: "Polygon Object/Define as Board Outline".

[clik on picture to enlarge]
