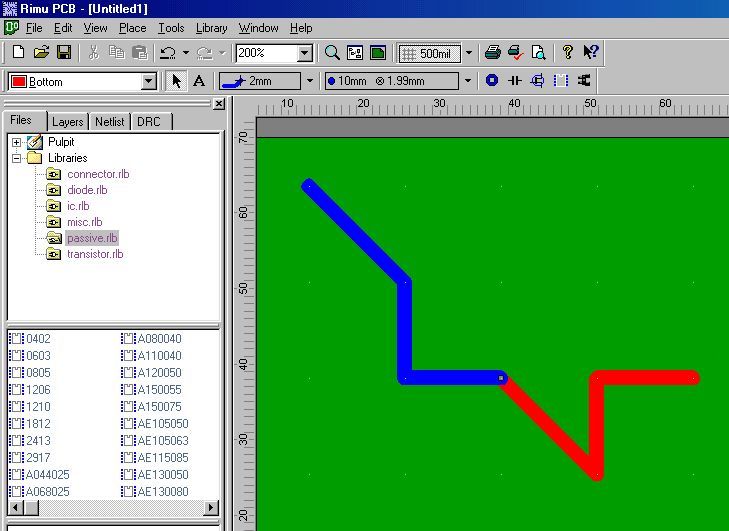

How to trace a conversion on the board's second site?

1. Click Route Track button

2. Draw track --> click right mouse button choose: "Place Via"

3. Press key B

4. Draw track --> when finish click right mouse button choose: "End Track"

[click on picture to enlarge]
